Descripción

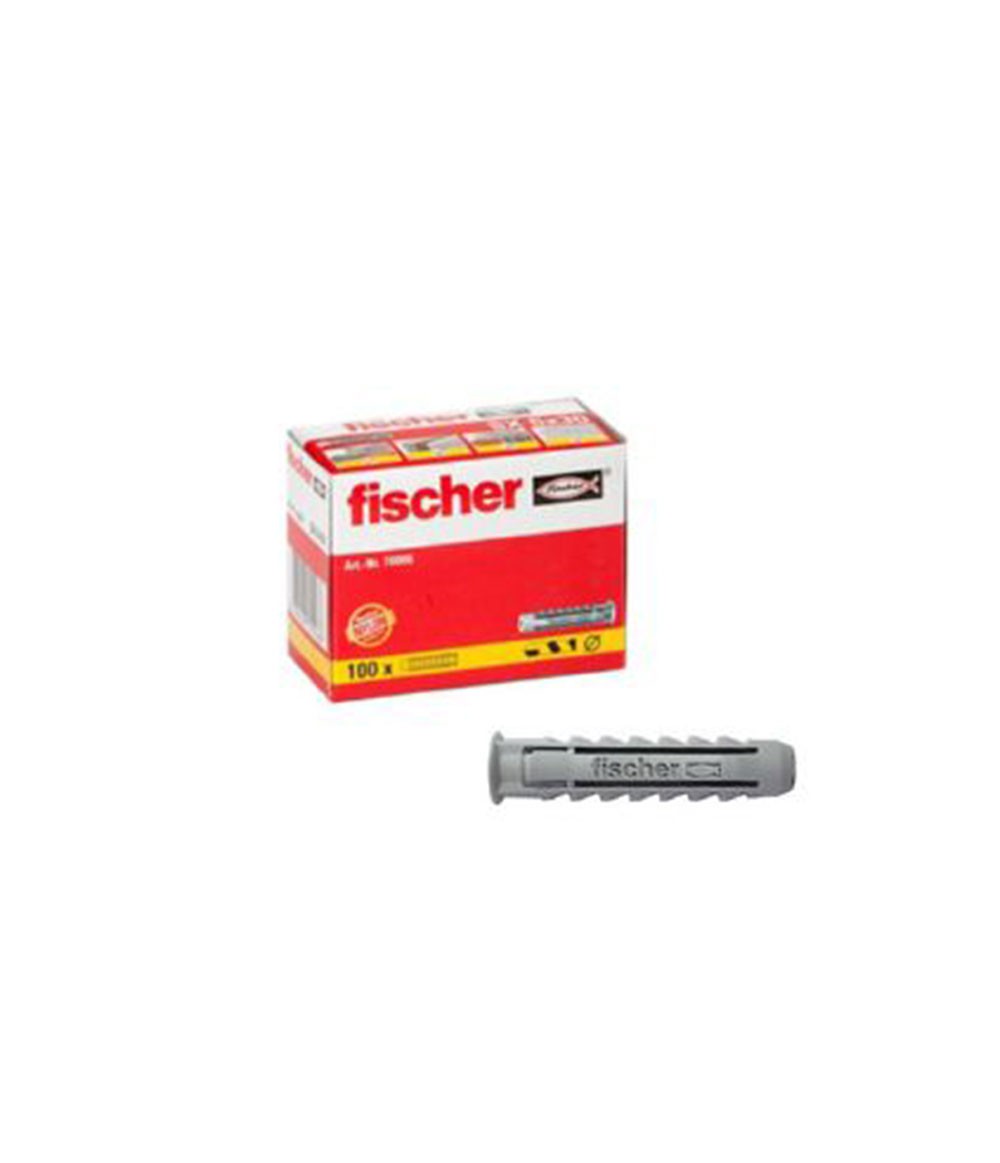

The Fischer SX expansion fastener optimally transfers forces to the building material on all 4 sides. It is designed for high-strength fixation accompanied by screws, guaranteeing optimal expansion.
Due to the expansion on all 4 sides, the Fischer SX expansion fastener optimally transfers forces to the construction material. The high quality nylon used in its production and its typical expansion guarantee a secure and permanent connection. The lip on the head of the fixture prevents the dowel from slipping into the drill hole. The screws supplied with the SX are the ideal size to ensure optimal expansion. It can be fixed for example: lamps, bathroom fixtures, light cabinets
CHARACTERISTICS
Hole diameter |
d 0
|
6 | [mm] |
Min. Drill hole depth |
h 1
|
40 | [mm] |
Anchor length |
l
|
30 | [mm] |
Screw |
d s xl s
|
4.5x40 | [mm] |
Effective anchoring depth |
h ef
|
30 | [mm] |
Drive | PZ2 |
