Descripción
Styrene-free sealing resin that improves comfort in application. Suitable for use on all types of supports and whose objective is to respect the environment and the user.
Two-component, fast-setting product consisting of a urethane acrylate resin and a hardener.
CHARACTERISTICS
- Virtually odorless - contains no styrene
- No risk phrase

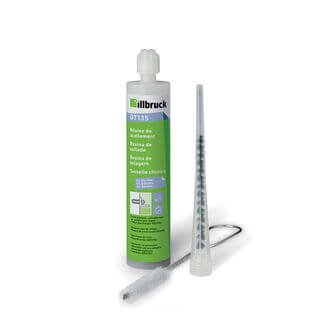

- The cartridge can be used with a simple silicone gun
- Easy to use
- Fast setting
- Technical specifications validated by SOCOTEC
SPECIFICATIONS
Threaded rod (M8-M10-M12) | hollow brick | concrete block |
---|---|---|
Traction | 0.5kN | 0.75kN |
Shearing | 1.5kN | 1.5kN |
Temperature | Handling time | Charging time |
---|---|---|
-5°C | 2 hours 15 minutes | 4 hours |
0°C | 1 hour 15 minutes | 2 hours |
+5°C | 25 min | 1 hour 30 minutes |
+10°C | 12 min | 40 min |
+20°C | 6 min | 20 min |
+30°C | 2 min | 15 min |
Medium | Threaded rod Dia. x length. (mm) | Drilling diameter (mm) | Sieve Dia. x length (mm) | Drilling depth (mm) | Tightening torque (Nm) |
---|---|---|---|---|---|
hollow brick | M8 x 140 | 16 | 15x85 | 90 | 4 |
hollow brick | M10x140 | 16 | 15x85 | 90 | 6 |
hollow brick | M12x120 | 16 | 15x85 | 90 | 8 |
hollow concrete block | M8 x 160 | 16 | 15x130 | 135 | 4 |
hollow concrete block | M10x160 | 16 | 15x130 | 135 | 6 |
hollow concrete block | M12x160 | 16 | 15x130 | 135 | 8 |
